High Tensile Industrial Control Cables Pull Only T Flex Control Cable Assembly

Brand Name : Phidix

Model Number : Pull-Only T-Flex

Certification : IATF16949

Place of Origin : Shang Hai

MOQ : 10 piece

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 800 pcs per month

Delivery Time : 7 - 40 work days

Packaging Details : carton or wood case

Series : pull only Industrial Control Cable Assembly

Applications : Clutch Cable,Throttle Cable,Hand brake cable,Engine stop cable

Transmission direction : pull only unidirectional

Wide Range Of Sizes Combinations W/Loads : 0kg — 1000kg

Material : Plated Steel Standard , Optional Stainless Steel

Suggested End Fittings : Clevises,Eye Ends,Swivels,Knobs

Contact Now

Phidix Pull-Only T-Flex Control Cable: Built to Withstand, Engineered to Flex

For industrial systems that demand reliable linear actuation under tension-only loads, the Phidix Pull-Only T-Flex Cable offers a performance-optimized solution—combining high tensile strength, low deflection, and a durable multi-layer conduit design.
This series is purpose-built to operate in environments where space is limited, loads are repetitive, and uptime is non-negotiable.
Trusted in clutch systems, throttle actuation, brake lockouts, and engine stop mechanisms—T-Flex is engineered to perform where conventional cables can't keep up.

What Makes T-Flex Different

Feature Standard Pull-Only Cable Phidix T-Flex Series
Conduit Design Single-layer steel wrap Dual-layer compressed flat wire wrap
Protective Sheath PVC only PP, PVC, or bare options available
Inner Liner None or standard plastic Optional high-density PP liner for low friction
Application Fit General braking or locking High-cycle motion control with routing complexity
Customization Basic end fittings Threaded rod, clevis, ball/socket, dashboard mounts


Internal Structure & Motion Control Integrity

Innermember: High-strength galvanized or tinned steel multi-strand cable, available in 0.078" to 0.188" diameters.
Conduit Construction: Multiple steel wire configurations with optional high-density inner liners.
Outer Sheath: Choice of PVC or polypropylene jacket; or no outer sheath for chassis-integrated protection.
Motion Characteristics: Low deflection, excellent bend performance, low friction pull stroke.
This cable assembly is not designed for compression—pull only.
High Tensile Industrial Control Cables Pull Only T Flex Control Cable Assembly

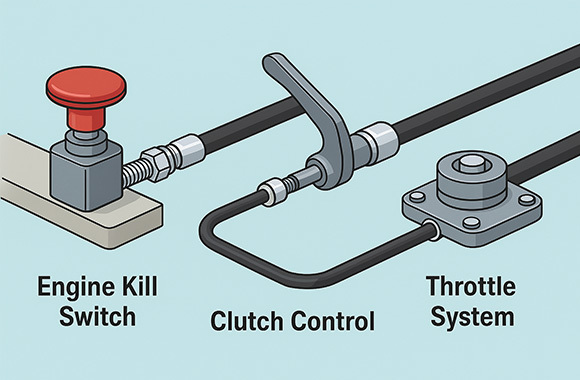

Typical Applications

Clutch Cables – Heavy-duty truck or marine disengagement systems
Engine Kill Switch Lines – Manual fuel or ignition shutoff
Throttle Pull Lines – Mechanical regulation on gensets and mobile hydraulics
Lockout & Disconnect Mechanisms – Emergency stop interlocks or latch systems
Industrial Equipment Routing – Linear cable systems with complex routing geometry
High Tensile Industrial Control Cables Pull Only T Flex Control Cable Assembly

Build Options & Component Flexibility

Inner Core
• Steel strand: 1x7, 1x19, or armored core
• Coated or bare, depending on environmental need
Liner
• High-density PP for reduced pull resistance
Outer Jacket
• Black PVC (default)
• Polypropylene (PP) for higher temperature tolerance
• No jacket for conduit-in-conduit routing
End Fittings
• Clevis rod end (UNF or metric)
• Swivel terminals
• Knob actuators
• Threaded sleeves or ball-stops
• Dash panel mounts
Full custom assemblies available to match your panel layout, control handle, or actuation lever.
High Tensile Industrial Control Cables Pull Only T Flex Control Cable Assembly

Technical Data Snapshot

Parameter Value Range
Max Load Up to 2200 lb (varies by core and fitting)
Travel Range 1.5"–6" (custom travel on request)
Min. Bend Radius 5" typical
Temp Tolerance -40°C to +105°C (varies by jacket type)
Core Diameter Options 0.078" / 0.125" / 0.188"


FAQs

Q: Can the T-Flex cable be used in push-pull systems?
A: No, this series is strictly pull-only by design.
Q: What if I need higher temp resistance or chemical tolerance?
A: Use the PP-jacket version or contact us for jacketless configurations.
Q: Can I get a version with dashboard knob actuator?
A: Yes. Threaded or snap-fit knob interfaces are available upon request.
Q: How do I specify length and end fittings?
A: Refer to our A (total length) and L (travel length) sizing sheet. Our team can assist.
