Micro Adjust Performance Push - Pull Control Head Has A Variety Of Flexible Trimming Handles
Product Description
We are a designer and manufacturer of an extensive range of aircraft cables. The throttle, mixture, and prop/pitch micro adjust controls are in full compliance with FAA regulations. For adjusting course travel, the knob needs to be pushed or pulled by depressing the center button.
Counter-clockwise rotation of the knob leads to retraction of the output in finite mode, while clockwise rotation leads to its extension. For 1" of linear travel, four and one-half turns are needed. The micro adjust setting is not affected by normal vibration.
In terms of accessories, an optional friction lock is available. This is needed for applications getting impacted by extreme vibration. Also available is a control head only for friction lock.
Features
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input);230°F (output)
Applications
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control
Suggested End Fittings
• Full Range
Technical Parameters
Standard Output - Throttle 565-550
| Notes: (Design Parameters) | Operating temperature: | Lost motion: .030 + .0004 per
degree of bend with ± 5.0lb of force |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end | Normal load: ±20lb |
| Minimum bend radius:3.00" | Glass filled nylon control head. |
Wire Rope Output - Throttle 565-557
| Notes: (Design Parameters) | Operating temperature: | Normal load: Unspecified (determined by installation configuration) |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 3.00" | Glass filled nylon control head. |
Solid Wire Output - Throttle 565-558
| Notes: (Design Parameters) | perating temperature: | Normal load: Unspecified (determined by installation configuration) |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 7.00" | Glass filled nylon control head. |

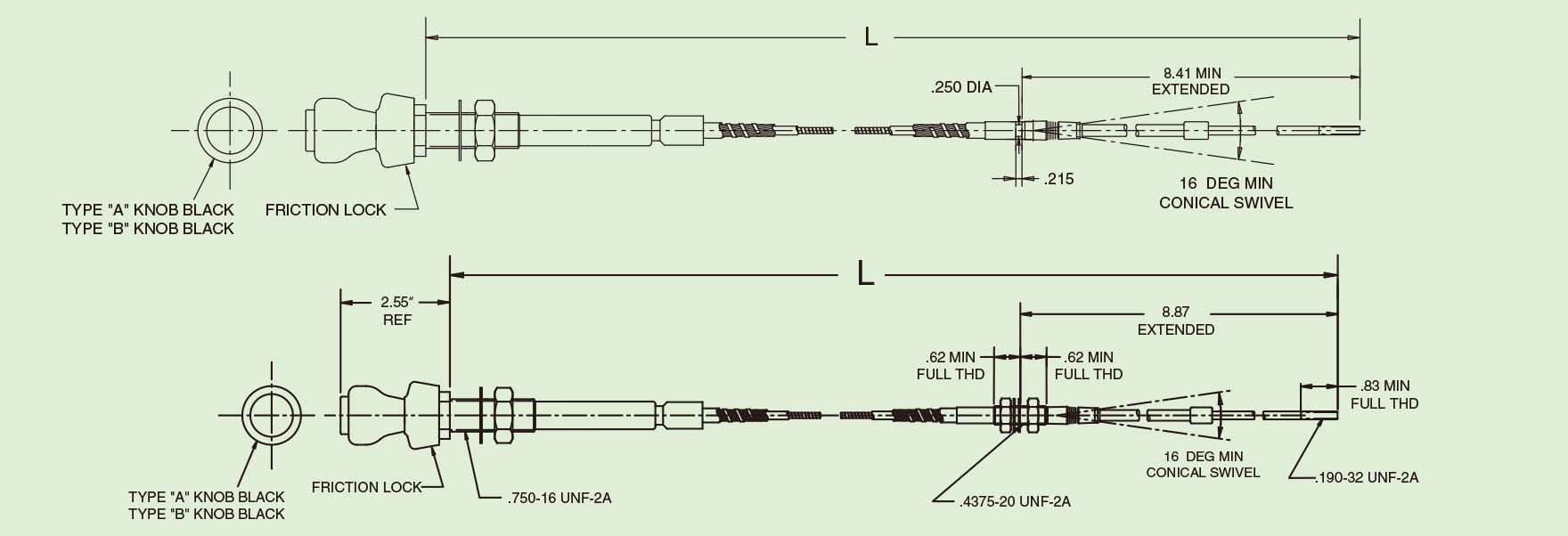

Friction Lock Control - Throttle 565-555
| Notes: (Design Parameters) | Operating temperature: | Normal load: 120lb tension,25lb compression |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 3.00" | Lost motion: .030'' + .0004 per
degree of bend with ± 5.0lb of force | Glass filled nylon control head. |
Standard Output - Mixture 565-550
| Notes: (Design Parameters) | Operating temperature: | Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end | Normal load: ± 20lb |
| Minimum bend radius: 3.00" | Glass filled nylon control head. |
Wire Rope Output - Mixture 565-557
| Notes: (Design Parameters) | Operating temperature: | Normal load: Unspecified (determined by installation configuration) |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 3.00" | Glass filled nylon control head. |
Solid Wire Output - Mixture 565-558
| Notes: (Design Parameters) | Operating temperature: | Normal load: Unspecified (determined by installation configuration) |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 7.00" | Glass filled nylon control head. |
Standard Output - Prop/Pitch 565-550
| Notes: (Design Parameters) | Operating temperature: | Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force |
| Stroke: 3.00" | from -65°F — +230°F
Normal load: ±20lb |
| Minimum bend radius: 7.00" | Glass filled nylon control head. |
Wire Rope Output - Prop/Pitch 565-557
| Notes: (Design Parameters) | Operating temperature: | Normal load: Unspecified (determined by installation configuration) |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 3.00" | Glass filled nylon control head. |
Solid Wire Output - Prop/Pitch 565-558
| Notes: (Design Parameters) | Operating temperature: | Normal load: Unspecified (determined by installation configuration) |
| Stroke: 3.00" | from -65°F — +165°F at
input end/+230°F at output end |
| Minimum bend radius: 7.00" | Glass filled nylon control head. |
Ordering Codes

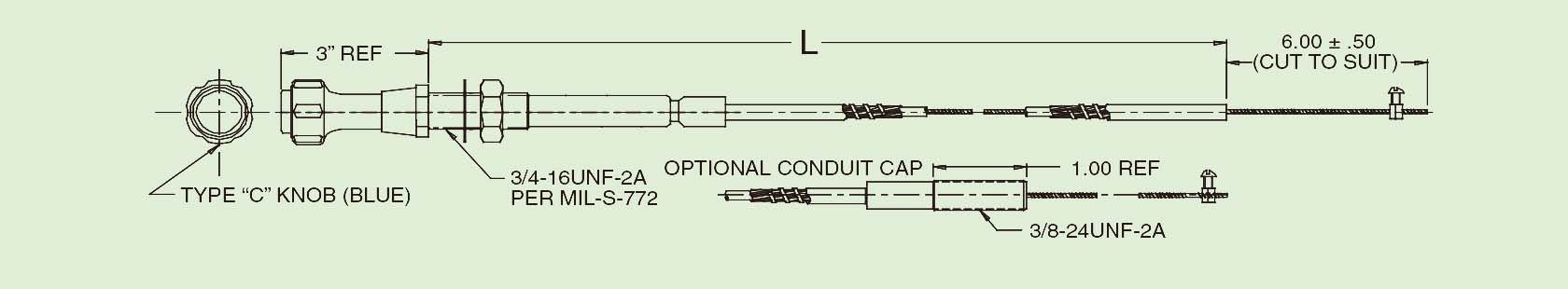

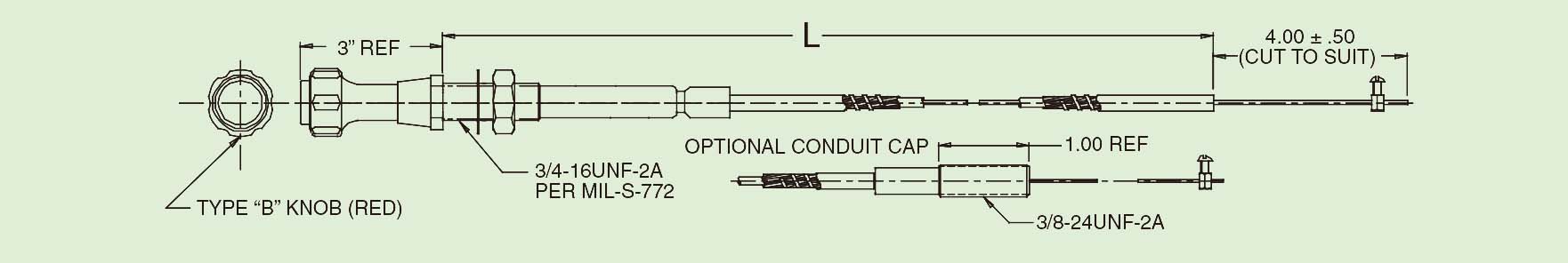

All line art dimensions are respented in inches.
Material
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit and Innermember
• Plastic Seal
• Plastic Knob
Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
FAQ
Q: What is the brand of the Control Cables?
A: The brand of the Control Cables is PHIDIX.
Q: What is the model number of the Control Cables?
A: The model number of the Control Cables is PHIDIX.
Q: Where is the Control Cables manufactured?
A: The Control Cables is manufactured in Shanghai.
Q: What are the specifications of the Control Cables?
A: Please contact us for the specifications of the Control Cables.
