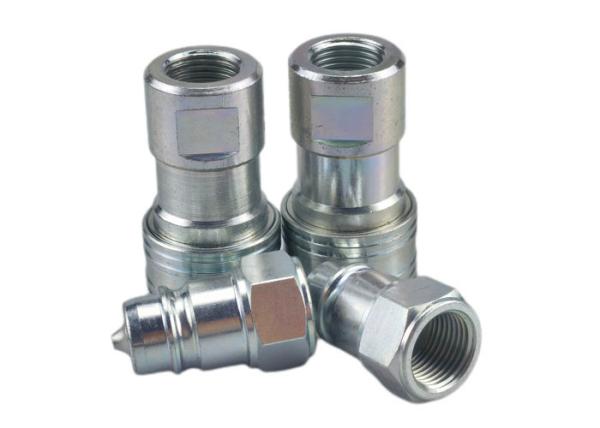

3/8 Inch IATF16949 Hydraulic Shut Off Coupling

  • 1
  • 2

Brand Name : carterberg

Model Number : CB-7

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : Steel

Technics : Machinning

Thread : BSPP/NPT

Locking Mechanism : Threaded

Seal : NBR

Interchange : Hansen 5000 Series

Application : hydraulic

Warranty : 1 year

Contact Now

3/8'' Steel quick disconnect coupling hydraulic applications double shut-off coupling

Features

  1. Proprietary profile
  2. Pull-to-connect with double shut-off valving
  3. Ball-locking
  4. Optional safety sleeve lock prevents accidental disconnections
  5. Optional dust caps and plugs (made of anodized aluminum)
  6. Pressure performance
  7. Compatible with HANSEN5000 Series.

CB-7 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.
Applications
• Automobile • Agriculture • Construction • Oil and Gas • Railway • Aeronautics • Food Processing • Iron and Steel Industry • Electronics • Laboratories • General Hydraulic Applications

Standard Materials

  • Zinc trivalent steel
  • Seals: NBR, Viton, EPDM

3/8 Inch IATF16949 Hydraulic Shut Off Coupling

Body Size PARTNO. Thread A B HEX
1/8" CB-S1S-7FN 1/8-27 1.65 0.94 0.63
1/8" CB-S1S-7FG 1/8-28 1.65 0.94 0.63
1/4" CB-S2S-7FN 1/4-18 1.97 1.10 0.75
1/4" CB-S2S-7FG 1/4-19 1.97 1.10 0.75
3/8" CB-S3S-7FN 3/8-18 2.32 1.34 0.90
3/8" CB-S3S-7FG 3/8-19 2.32 1.34 0.90
1/2" CB-S4S-7FN 1/2-14 2.71 1.50 1.06
1/2" CB-S4S-7FG 1/2-14 2.71 1.50 1.06
3/4" CB-S6S-7FN 3/4-14 3.50 1.89 1.38
3/4" CB-S6S-7FG 3/4-14 3.50 1.89 1.38
1" CB-S8S-7FN 1-11 3.89 2.05 1.61
1" CB-S8S-7FG 1-11 3.89 2.05 1.61

3/8 Inch IATF16949 Hydraulic Shut Off Coupling

Body Size PARTNO. Thread C D HEX
1/8" CB-P1S-7FN 1/8-27 1.10 0.72 0.63
1/8" CB-P1S-7FG 1/8-28 1.10 0.72 0.63
1/4" CB-P2S-7FN 1/4-18 1.38 0.86 0.75
1/4" CB-P2S-7FG 1/4-19 1.38 0.86 0.75
3/8" CB-P3S-7FN 3/8-18 1.65 1.04 0.90
3/8" CB-P3S-7FG 3/8-19 1.65 1.04 0.90
1/2" CB-P4S-7FN 1/2-14 1.97 1.22 1.06
1/2" CB-P4S-7FG 1/2-14 1.97 1.22 1.06
3/4" CB-P6S-7FN 3/4-14 2.48 1.58 1.38
3/4" CB-P6S-7FG 3/4-14 2.48 1.58 1.38
1" CB-P8S-7FN 1-11 2.79 1.87 1.61
1" CB-P8S-7FG 1-11 2.79 1.87 1.61
