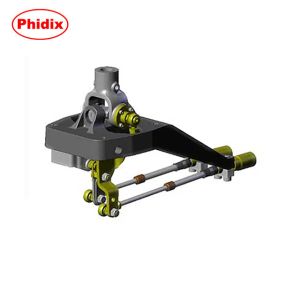

Horizontal Gear Shifter HGS Systems 923 Series

Brand Name : PHIDIX

Model Number : Manual Transmission Shifter

Certification : IATF16949

Place of Origin : China

MOQ : 100 Piece/Pieces

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 888 Piece/Pieces per Month

Delivery Time : 7-40 work days

Packaging Details : carton or wood case

Name : Horizontal Gear Shifter HGS Systems 923 Series

Operating Temperature : -40°C To 120°C (-40°F To 248°F)

Material : Pressure Die-Cast Aluminum

Feature : Easy Installation, Adjustment Free,Maintenance-free Life

Applications : Center Console Mounted Shifter, Bus, Coach & Truck, Agricultural Vehicles

Weight : 3.2kg (7.0lb.)

Contact Now

Horizontal Gear Shifter HGS Systems 923 Series



Product Description

This reliable shift system replaces the cumbersome and maintenance-prone rod linkages commonly used in cab-over and rear engine bus systems, making remote shifting easier for both the vehicle builder and the operator. They are easily installed and maintenance-free.

Vibration from the drive train is not transmitted resulting in enhanced operator usage and reduced cab noise levels.

Two versions of the Horizontal Gear Shifter are offered, the 923 Series Horizontal Gear Shifter is floor mounted and the 925 Series Horizontal Gear Shifter is center console-mounted. Both the 923 Series and the 925 Series are designed for medium to heavy duty applications.

Features

• Easy installation, adjustment free

• Maintenance-free life

• Ends gear jump out

• Clean precise shifts

• No knob-to-cab relative movement in floating cabs

• No action required to tilt cab

• Vibration from drive train is not transmitted

• Reduced cab noise levels

• Low cost

• Installation design to customer requirements

• Flexible capability with different cable end fittings

Applications

• Center console mounted shifter

• Servo & non-servo assisted transmissions

• Bus, coach & truck applications

• Heavy/medium plant/agricultural vehicles

• Heavy/medium duty cable applications

Specifications

Horizontal Gear Shifter HGS Systems 923 Series

Technical Parameters

Technical Data

• Recommended handle lengths: 610mm to 760mm (24" - 30" approx.)

• Normal working load @ knob = 3kg (6.6 lb.) to 5kg (11lb.)

• Accidental overload @ knob = 100kg (220lb.)

• Operating temperatures: -40°C to 120°C (-40°F to 248°F)

• Weight: 3.2kg (7.0lb.)

--------------------------------------------------------------------------------

3D CAD Models available upon request

Horizontal Gear Shifter HGS Systems 923 Series

Material

• Pressure Die-Cast Aluminum

Real Picture

Horizontal Gear Shifter HGS Systems 923 Series

Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX

FAQ

Q: What is the brand of the Control Cables?

A: The brand of the Control Cables is PHIDIX.

Q: What is the model number of the Control Cables?

A: The model number of the Control Cables is PHIDIX.

Q: Where is the Control Cables manufactured?

A: The Control Cables is manufactured in Shanghai.

Q: What are the specifications of the Control Cables?

A: Please contact us for the specifications of the Control Cables.
